ESTOC
Institution:
PLOCAN
Localization: Canarias
Coordinate: 29.2286 / -15.5223

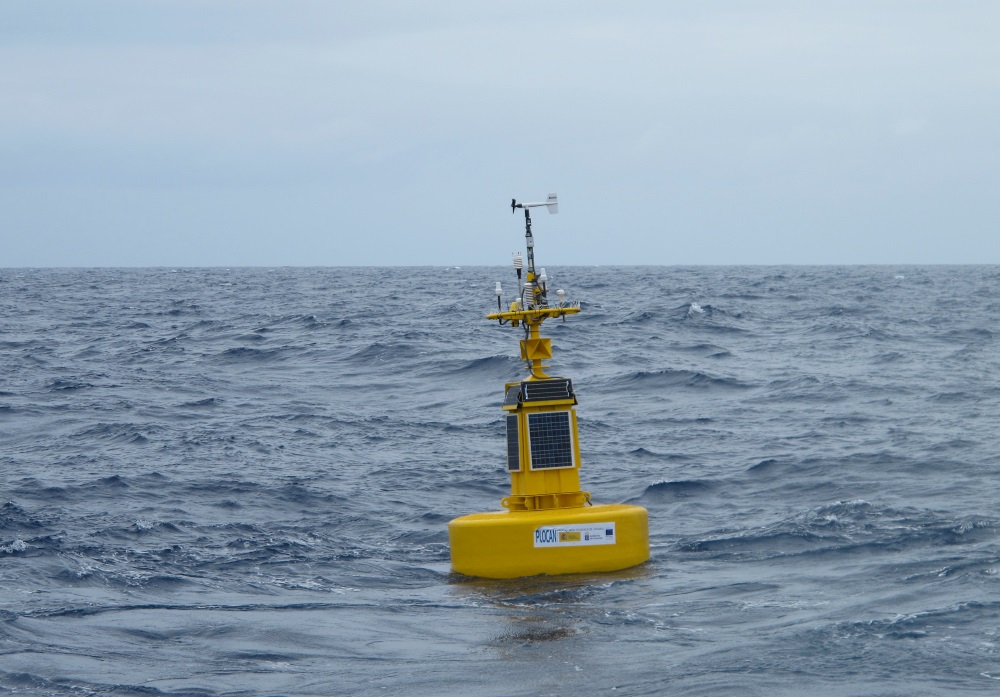

Type: Buoy ODAS
Communication system: Iridium
Communication rate: 1 hr (dm)
Status: Active
Datasheet device 105
Datasheet device 106
Installed meteocenographic sensors
- Manufacturer: Vaisala
- Model: HMP155
- Info: Temperature and humidity sensor
- Manufacturer: Vaisala
- Model: PTB110
- Info: Barometer for environmental pressure monitoring
- Manufacturer: Young
- Model: 32500
- Info: Electronic Compass, serial interface
- Manufacturer: Apogee Instruments
- Model: SQ-215
- Info: Photosynthetically active radiation, often abbreviated PAR, designates the spectral range (wave band) of solar radiation from 400 to 700 nanometers that photosynthetic organisms are able to use in the process of photosynthesis. This spectral region corresponds more or less with the range of light visible to the human eye. Photons at shorter wavelengths tend to be so energetic that they can be damaging to cells and tissues, but are mostly filtered out by the ozone layer in the stratosphere. Photons at longer wavelengths do not carry enough energy to allow photosynthesis to take place.
- Manufacturer: Wetlabs
- Model: FLNTUSB
- Info: WET Labs offers the Environmental Characterization Optics (ECO) series of meters that incorporate a common set of options with a single basic design to make them ideal for a wide variety of deployments. The FLNTU: • Combines the unparalleled sensitivity of the ECO fluorometer with an optical scattering measurement at 700 nm for simultaneous determination of turbidity • Ranges for output tailored to the environment • Allows for assessment of fluorescence and turbidity variability and interactions • Digital and analog output for easy integration into analog CTD packages or serial data streams • Provides excellent precision, reliability and overall performance at a fraction of the cost and size of similar instruments
- Manufacturer: SensorLab
- Model: SP200-SM
- Info: The SP200-SM is a High accuracy colorimetric pH sensor designed for in situ operation in shallow waters. The SP200-SM pH sensors has no significant drift, even after operating for several months. The sensor can be autonomously operated thanks to its internal Li-Ion battery.
- Manufacturer: Garmin
- Model: 17x
- Info: GPD receiver
- Manufacturer: Sea-Bird Electronics
- Model: SBE37-SM
- Info: The SBE 37-SM MicroCAT is a high-accuracy conductivity and temperature (pressure optional) recorder with Serial interface (RS-232 or RS-485), internal batteries, and Memory. The MicroCAT is designed for moorings or other long-duration, fixed-site deployments.
- Manufacturer: AADI
- Model: Optode 4835
- Info: O2 concentration optical measurement principle sensor.
- Manufacturer: Pro-Oceanus
- Model: CO2-Pro CV
- Info: The CO2-Pro CV instrument measures the partial pressure of CO2 gas dissolved in water using infrared detection. Standard ranges from 0-600 ppm up to 0-10,000 ppm provide the full spectrum of pCO2 needed for accurate measurement of ocean, coastal, riverine and lake CO2 levels.
- Manufacturer: Vaisala
- Model: PTB110
- Info: Barometer for environmental pressure monitoring
- Manufacturer: Young
- Model: 32500
- Info: Electronic Compass, serial interface
- Manufacturer: Apogee Instruments
- Model: SQ-215
- Info: Photosynthetically active radiation, often abbreviated PAR, designates the spectral range (wave band) of solar radiation from 400 to 700 nanometers that photosynthetic organisms are able to use in the process of photosynthesis. This spectral region corresponds more or less with the range of light visible to the human eye. Photons at shorter wavelengths tend to be so energetic that they can be damaging to cells and tissues, but are mostly filtered out by the ozone layer in the stratosphere. Photons at longer wavelengths do not carry enough energy to allow photosynthesis to take place.
- Manufacturer: Vaisala
- Model: HMP155
- Info: Temperature and humidity sensor
- Manufacturer: Wetlabs
- Model: FLNTUSB
- Info: WET Labs offers the Environmental Characterization Optics (ECO) series of meters that incorporate a common set of options with a single basic design to make them ideal for a wide variety of deployments. The FLNTU: • Combines the unparalleled sensitivity of the ECO fluorometer with an optical scattering measurement at 700 nm for simultaneous determination of turbidity • Ranges for output tailored to the environment • Allows for assessment of fluorescence and turbidity variability and interactions • Digital and analog output for easy integration into analog CTD packages or serial data streams • Provides excellent precision, reliability and overall performance at a fraction of the cost and size of similar instruments
- Manufacturer: Sea-Bird Electronics
- Model: SBE37-SM
- Info: The SBE 37-SM MicroCAT is a high-accuracy conductivity and temperature (pressure optional) recorder with Serial interface (RS-232 or RS-485), internal batteries, and Memory. The MicroCAT is designed for moorings or other long-duration, fixed-site deployments.
- Manufacturer: AADI
- Model: Optode 4835
- Info: O2 concentration optical measurement principle sensor.
- Manufacturer: Vaisala
- Model: WMT701
- Info: Vaisala WINDCAP ® Ultrasonic Wind Sensor WMT700 Series is a robust and reliable ultrasonic anemometer. It measures surface wind, which is one of the key parameters for meteorology and aviation. The WMT700 Series meets the updated - WMO-No.8 guide, 7th edition - and ICAO requirements
Temperature and Humidity Probe
Barometric Pressure Sensor
Compass

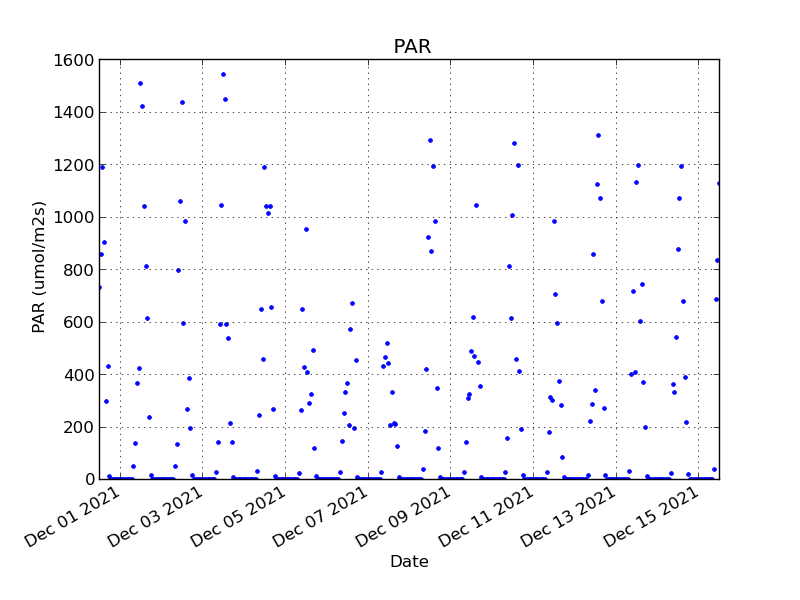

Solar Radiation Sensor

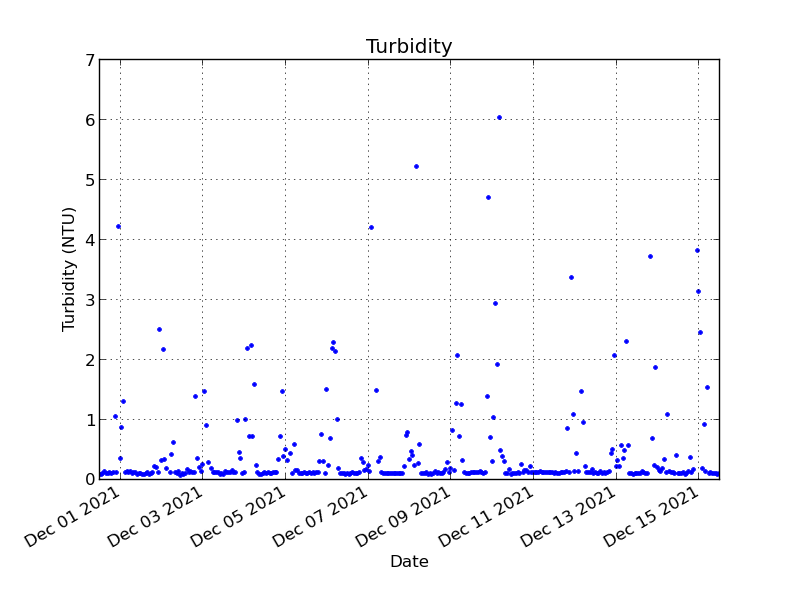

Turbidity Sensor

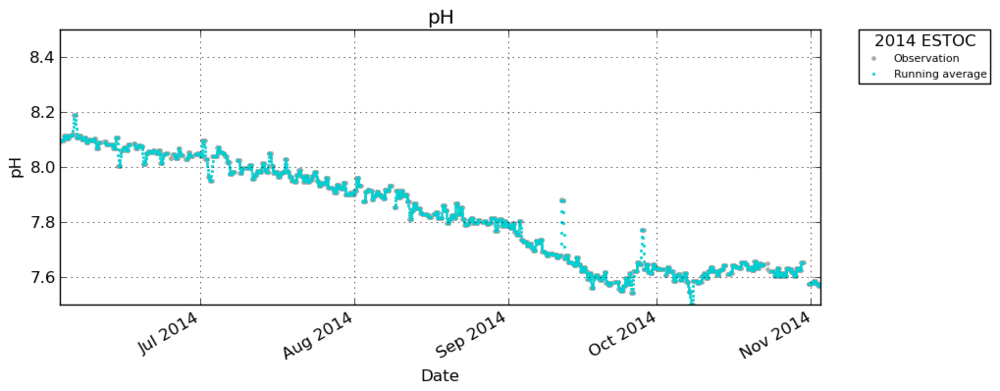

pH Sensor
GPS

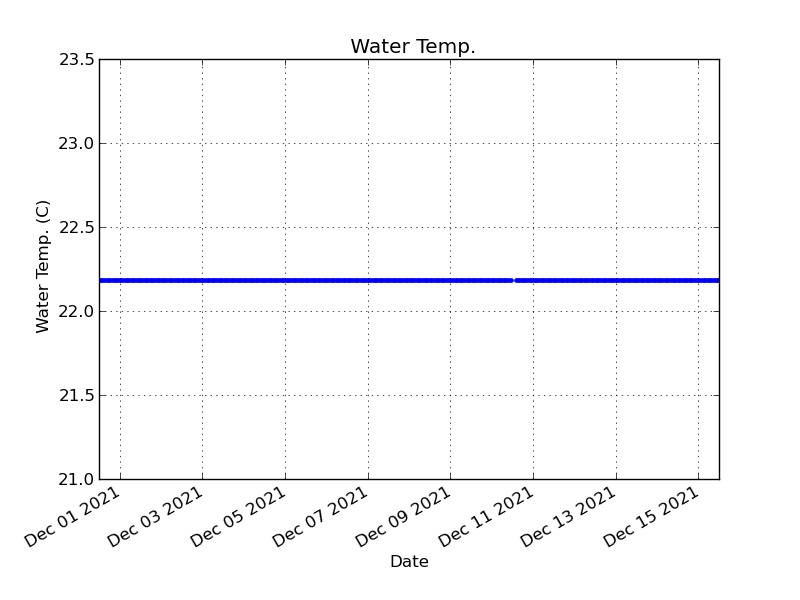

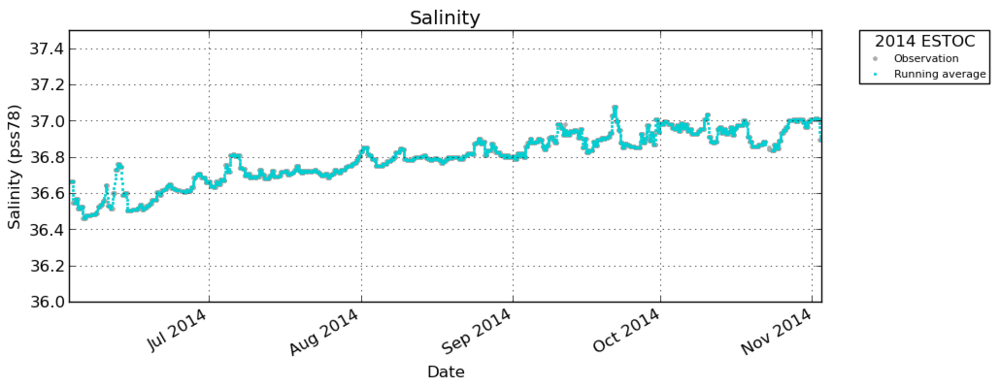

MicroCAT

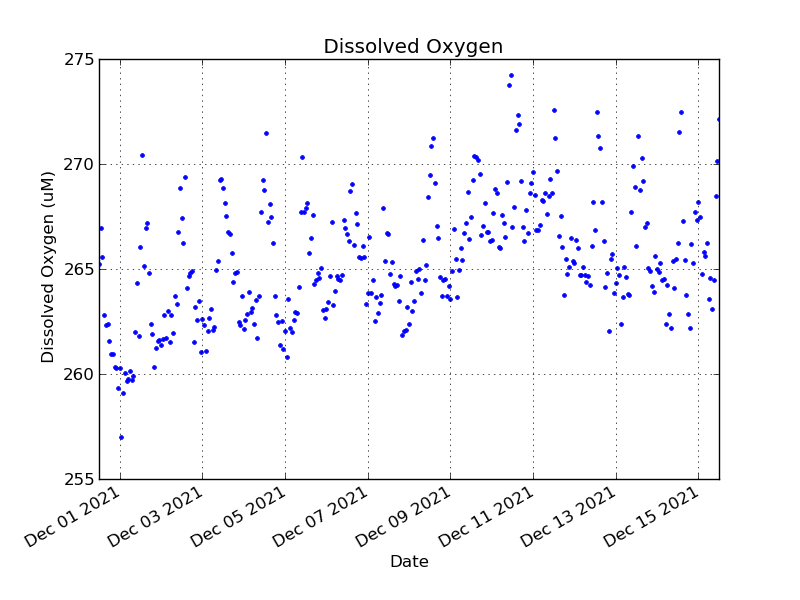

Oxygen Sensor

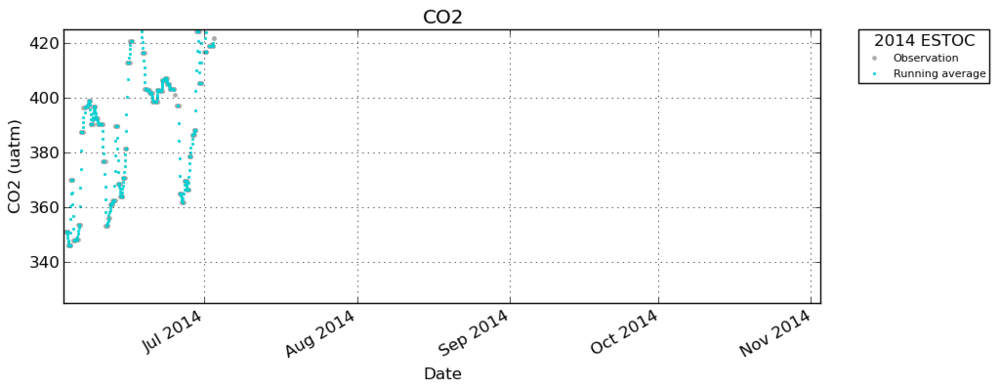

CO2 Sensor

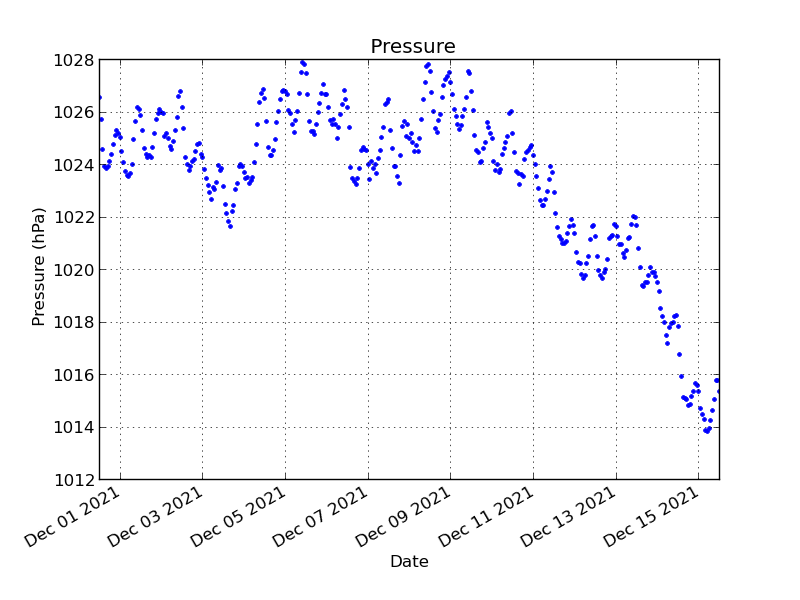

Barometric Pressure Sensor
Compass
Solar Radiation Sensor

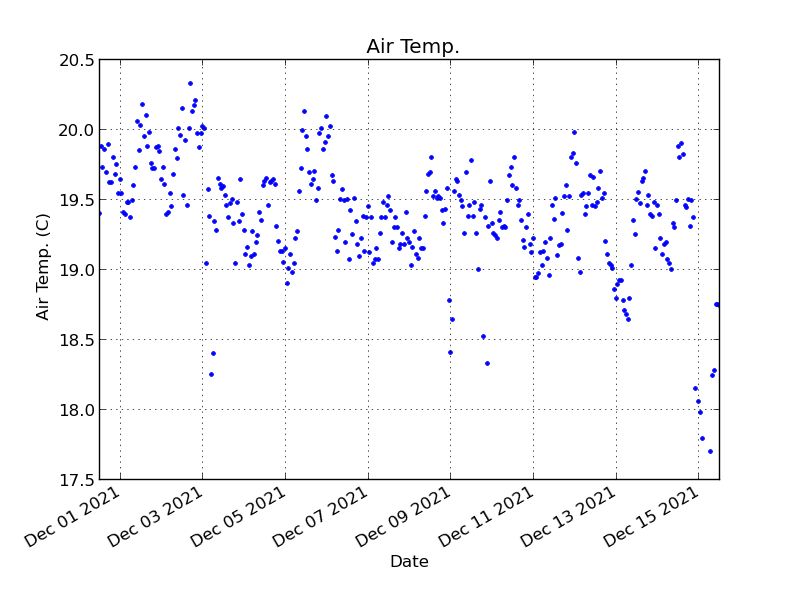

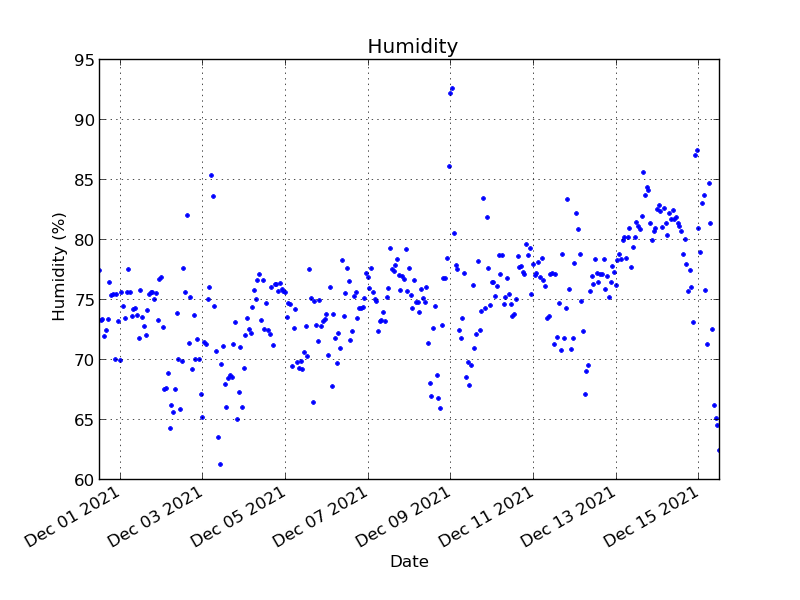

Temperature and Humidity Probe

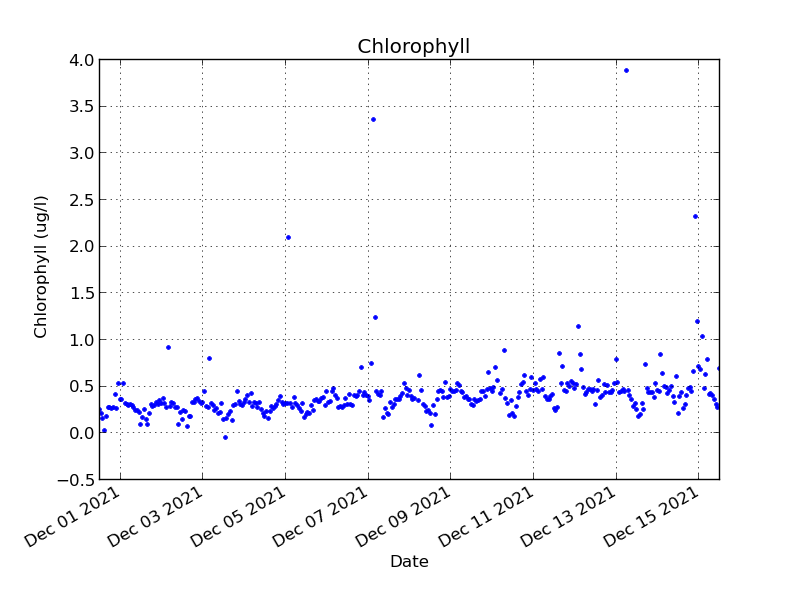

Turbidity Sensor
MicroCAT
Oxygen Sensor

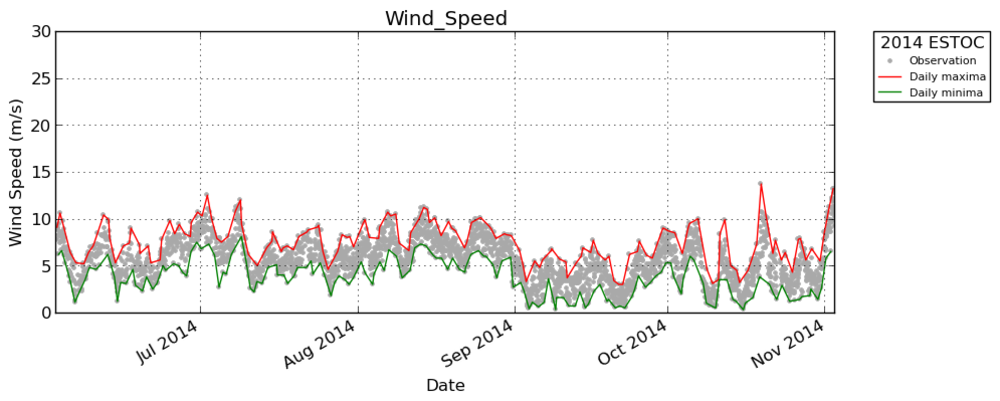

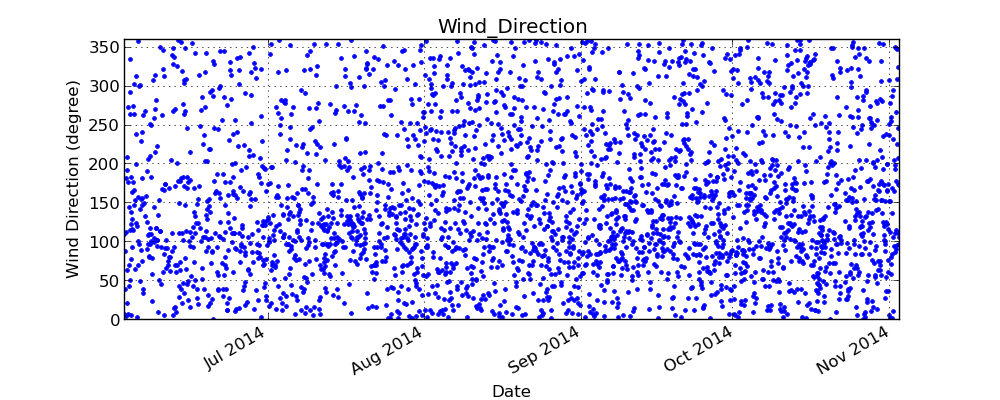

Wind Sensor
| Device | Deployment date | Recovery date |
|---|---|---|
| Buoy ODAS (35958) | June 2, 2014 | 2014-12-22 |
| Buoy ODAS (35932) | June 2, 2014 | 2014-12-22 |
| Buoy ODAS (101) | May 18, 2015 | 2015-09-24 |
| Buoy ODAS (102) | May 18, 2015 | 2015-09-24 |
| Buoy ODAS (101) | Oct. 24, 2015 | 2016-06-08 |
| Buoy ODAS (102) | Oct. 24, 2015 | 2016-06-08 |
| Buoy ODAS (105) | Oct. 11, 2016 | 2016-12-03 |
| Buoy ODAS (106) | Oct. 11, 2016 | 2016-12-03 |
| Buoy ODAS (106) | April 14, 2017 | 2017-09-26 |
| Buoy ODAS (105) | April 14, 2017 | 2017-09-26 |
| Buoy ODAS (102) | Sept. 27, 2017 | 2018-03-07 |
| Buoy ODAS (101) | Sept. 27, 2017 | 2018-03-07 |
| Buoy ODAS (105) | May 22, 2018 | 2019-02-26 |
| Buoy ODAS (106) | May 22, 2018 | 2019-02-26 |
| Buoy ODAS (101) | Feb. 24, 2019 | 2019-12-04 |
| Buoy ODAS (102) | Feb. 24, 2019 | 2019-02-24 |
| Buoy ODAS (106) | Dec. 4, 2019 | 2020-07-14 |
| Buoy ODAS (105) | Dec. 4, 2019 | 2020-07-14 |
| Buoy ODAS (101) | Dec. 28, 2020 | 2021-12-18 |
| Buoy ODAS (102) | Dec. 28, 2020 | 2021-12-18 |
| Buoy ODAS (105) | Feb. 15, 2024 | - |
| Buoy ODAS (106) | Feb. 15, 2024 | - |
