Praia da Vitoria

Institution:   UAc
Localization:   Azores
Coordinate:   38.715182 / -27.05647
Type: Buoy SeaMon-HC
Communication system:  GPRS
Communication rate:  1 hr.
Status: Maintenance
Datasheet device 1016

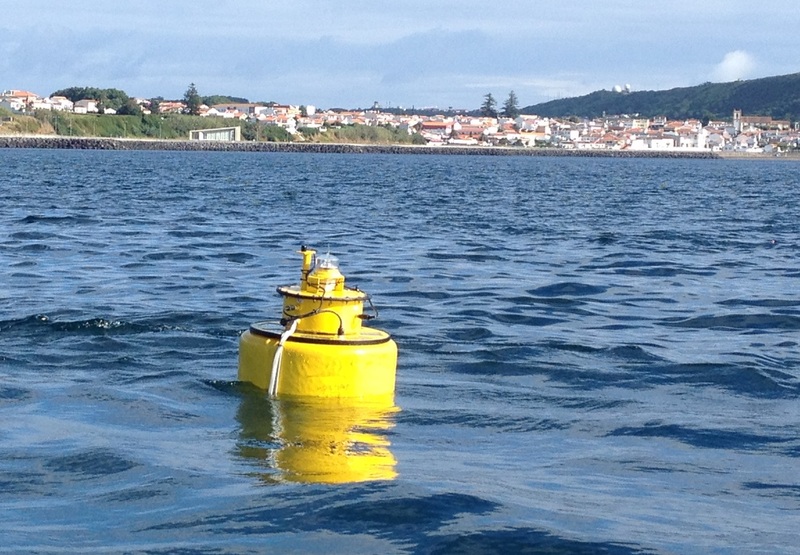

Device Picture

Installed meteocenographic sensors

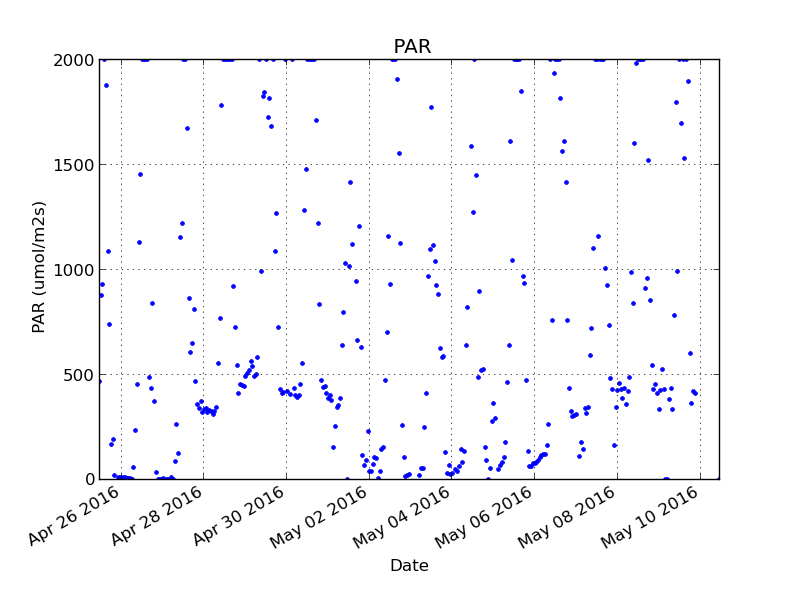

    Solar Radiation Sensor

    • Manufacturer: Apogee Instruments
    • Model: SQ-215
    • Info: Photosynthetically active radiation, often abbreviated PAR, designates the spectral range (wave band) of solar radiation from 400 to 700 nanometers that photosynthetic organisms are able to use in the process of photosynthesis. This spectral region corresponds more or less with the range of light visible to the human eye. Photons at shorter wavelengths tend to be so energetic that they can be damaging to cells and tissues, but are mostly filtered out by the ozone layer in the stratosphere. Photons at longer wavelengths do not carry enough energy to allow photosynthesis to take place.

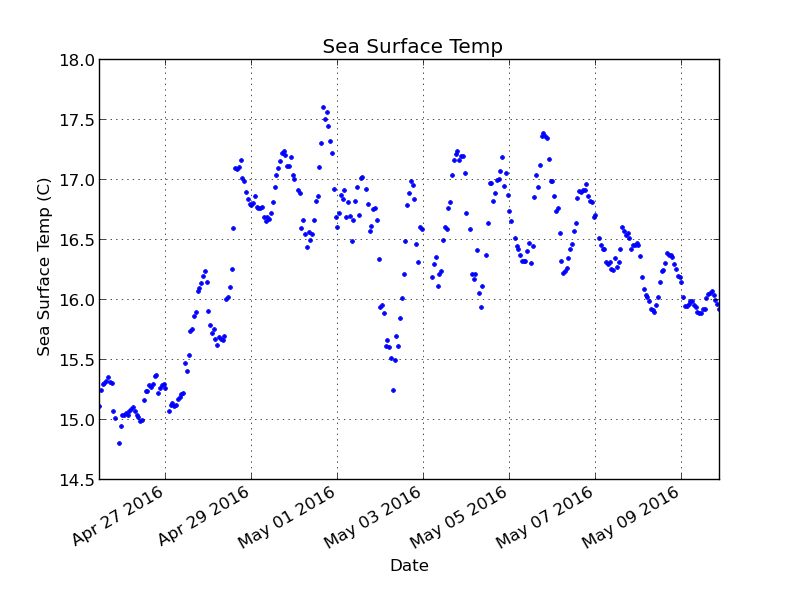

    Temperature Sensor

    • Manufacturer: Desin
    • Model: PT-100
    • Info: Resistive sensor that measures how cold or hot is the sea surface in Celsius scale.

    Temperature Sensor

    • Manufacturer: Desin
    • Model: PT-100
    • Info: Resistive sensor that measures how cold or hot is the sea surface in Celsius scale.

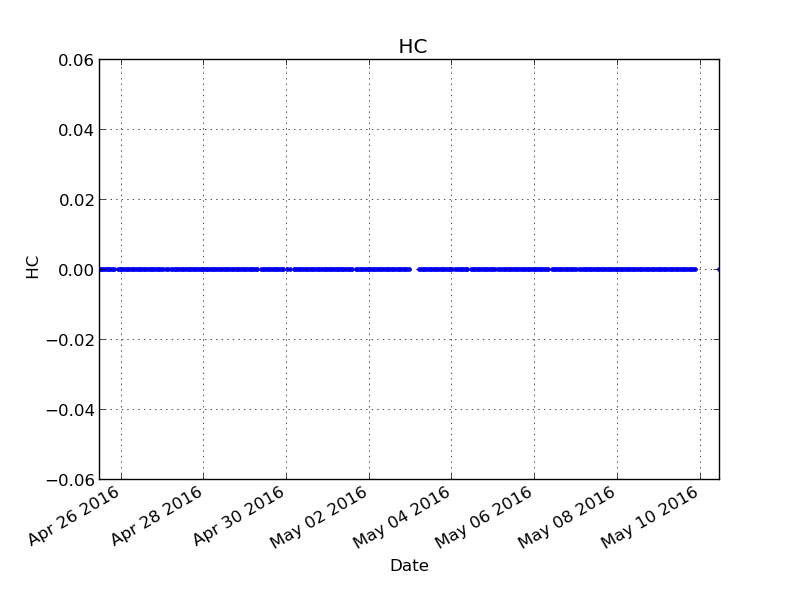

    HC Sensor

    • Manufacturer: OPW
    • Model: 30-3207-06
    • Info: This sensor indicates if there is any fuel in the area. It is a polymeric sensor that provides a qualitative measure, i.e, it only indicates it there is presence of fuel (value 1) or not (value 0)
Device Deployment date Recovery date
Buoy SeaMon-HC (1016) July 16, 2014 2015-02-11
Buoy SeaMon-HC (1016) Sept. 21, 2015 -
