Mindelo

Institution:   INDP
Localization:   Cabo Verde
Coordinate:   16.89582 / -24.996998
Type: Buoy SeaMon-HC
Communication system:  GPRS
Communication rate:  1 hr.
Status: Inactive
Datasheet device 1015

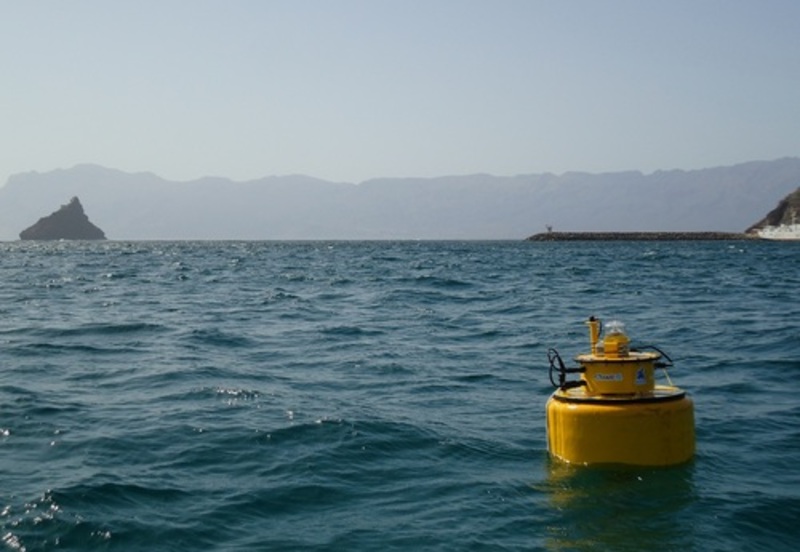

Device Picture

Installed meteocenographic sensors

    HC Sensor

    • Manufacturer: OPW
    • Model: 30-3207-06
    • Info: This sensor indicates if there is any fuel in the area. It is a polymeric sensor that provides a qualitative measure, i.e, it only indicates it there is presence of fuel (value 1) or not (value 0)

    Solar Radiation Sensor

    • Manufacturer: Apogee Instruments
    • Model: SQ-215
    • Info: Photosynthetically active radiation, often abbreviated PAR, designates the spectral range (wave band) of solar radiation from 400 to 700 nanometers that photosynthetic organisms are able to use in the process of photosynthesis. This spectral region corresponds more or less with the range of light visible to the human eye. Photons at shorter wavelengths tend to be so energetic that they can be damaging to cells and tissues, but are mostly filtered out by the ozone layer in the stratosphere. Photons at longer wavelengths do not carry enough energy to allow photosynthesis to take place.

    Temperature Sensor

    • Manufacturer: Desin
    • Model: PT-100
    • Info: Resistive sensor that measures how cold or hot is the sea surface in Celsius scale.

    Temperature Sensor

    • Manufacturer: Desin
    • Model: PT-100
    • Info: Resistive sensor that measures how cold or hot is the sea surface in Celsius scale.
Device Deployment date Recovery date
Buoy SeaMon-HC (1015) May 13, 2013 2013-10-09
Buoy SeaMon-HC (1015) May 14, 2014 2016-08-06
