Institution:   PLOCAN
Localization:   Canarias
Coordinate:   28.133092 / -15.423503
Type: Buoy SeaMon-HC
Communication system:  GPRS
Communication rate:  1 hr.
Status: Maintenance
Datasheet device 1021

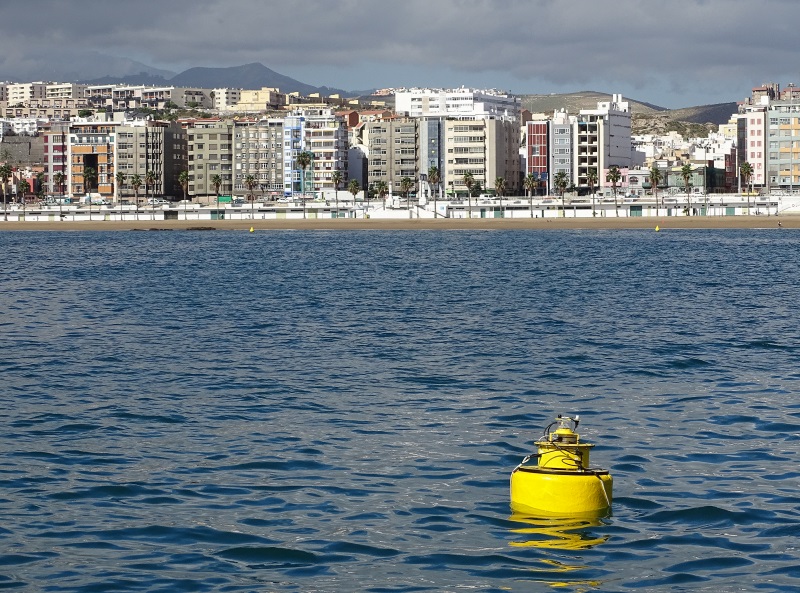

Device Picture

Installed meteocenographic sensors

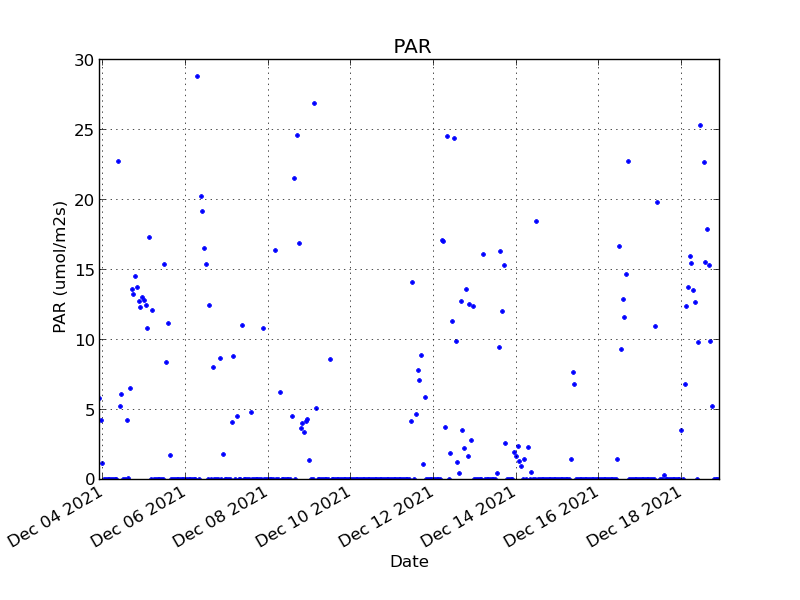

    Solar Radiation Sensor

    • Manufacturer: Apogee Instruments
    • Model: SQ-215
    • Info: Photosynthetically active radiation, often abbreviated PAR, designates the spectral range (wave band) of solar radiation from 400 to 700 nanometers that photosynthetic organisms are able to use in the process of photosynthesis. This spectral region corresponds more or less with the range of light visible to the human eye. Photons at shorter wavelengths tend to be so energetic that they can be damaging to cells and tissues, but are mostly filtered out by the ozone layer in the stratosphere. Photons at longer wavelengths do not carry enough energy to allow photosynthesis to take place.

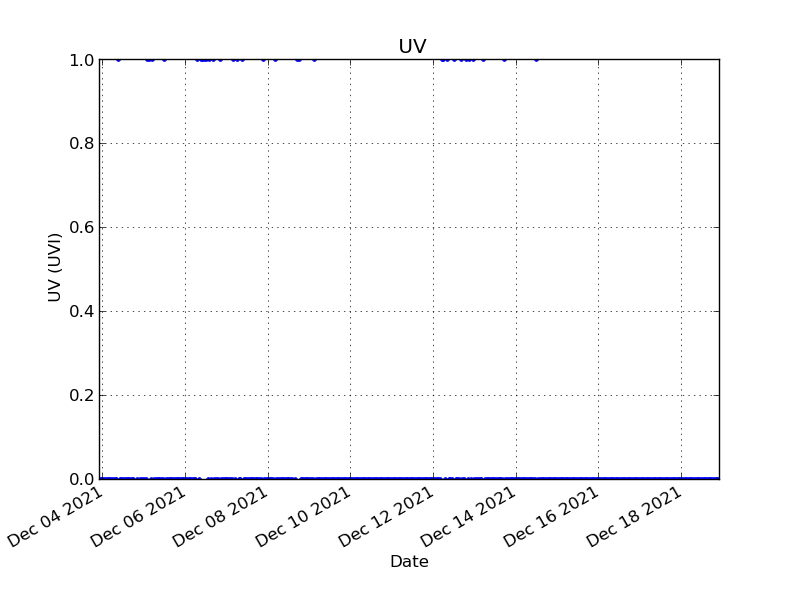

    Ultraviolet Radiation Sensor

    • Manufacturer: SGLUX
    • Model: UV-Cosine
    • Info: Ultraviolet (UV) light is electromagnetic radiation with a wavelength shorter than that of visible light, but longer than X-rays, that is, in the range between 400 nm and 10 nm, corresponding to photon energies from 3 eV to 124 eV. It is so-named because the spectrum consists of electromagnetic waves with frequencies higher than those that humans identify as the color violet. These frequencies are invisible to humans, but near UV is visible to a number of insects and birds. The ultraviolet index or UV Index is an international standard measurement of the strength of the ultraviolet (UV) radiation from the sun at a particular place on a particular day.

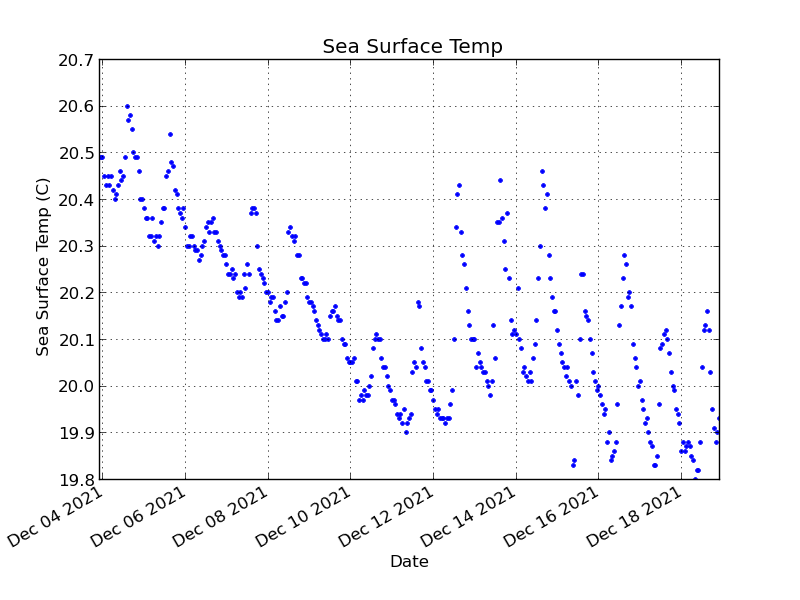

    Temperature Sensor

    • Manufacturer: Desin
    • Model: PT-100
    • Info: Resistive sensor that measures how cold or hot is the sea surface in Celsius scale.

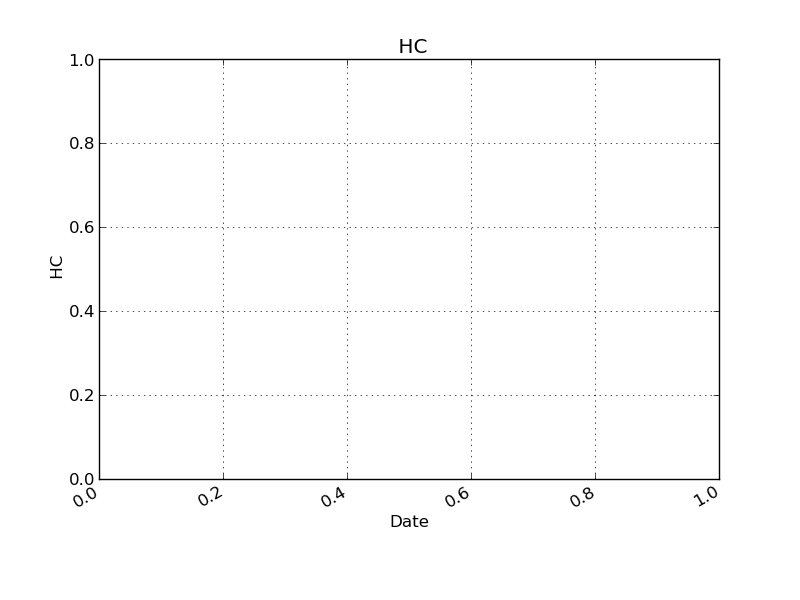

    HC Sensor

    • Manufacturer: OPW
    • Model: 30-3207-06
    • Info: This sensor indicates if there is any fuel in the area. It is a polymeric sensor that provides a qualitative measure, i.e, it only indicates it there is presence of fuel (value 1) or not (value 0)
Device Deployment date Recovery date
Buoy SeaMon-HC (1021) March 29, 2016 2017-01-17
Buoy SeaMon-HC (1021) May 8, 2017 2017-10-23
Buoy SeaMon-HC (1021) Feb. 25, 2019 2019-11-19
Buoy SeaMon-HC (1021) Feb. 26, 2020 2022-05-17
